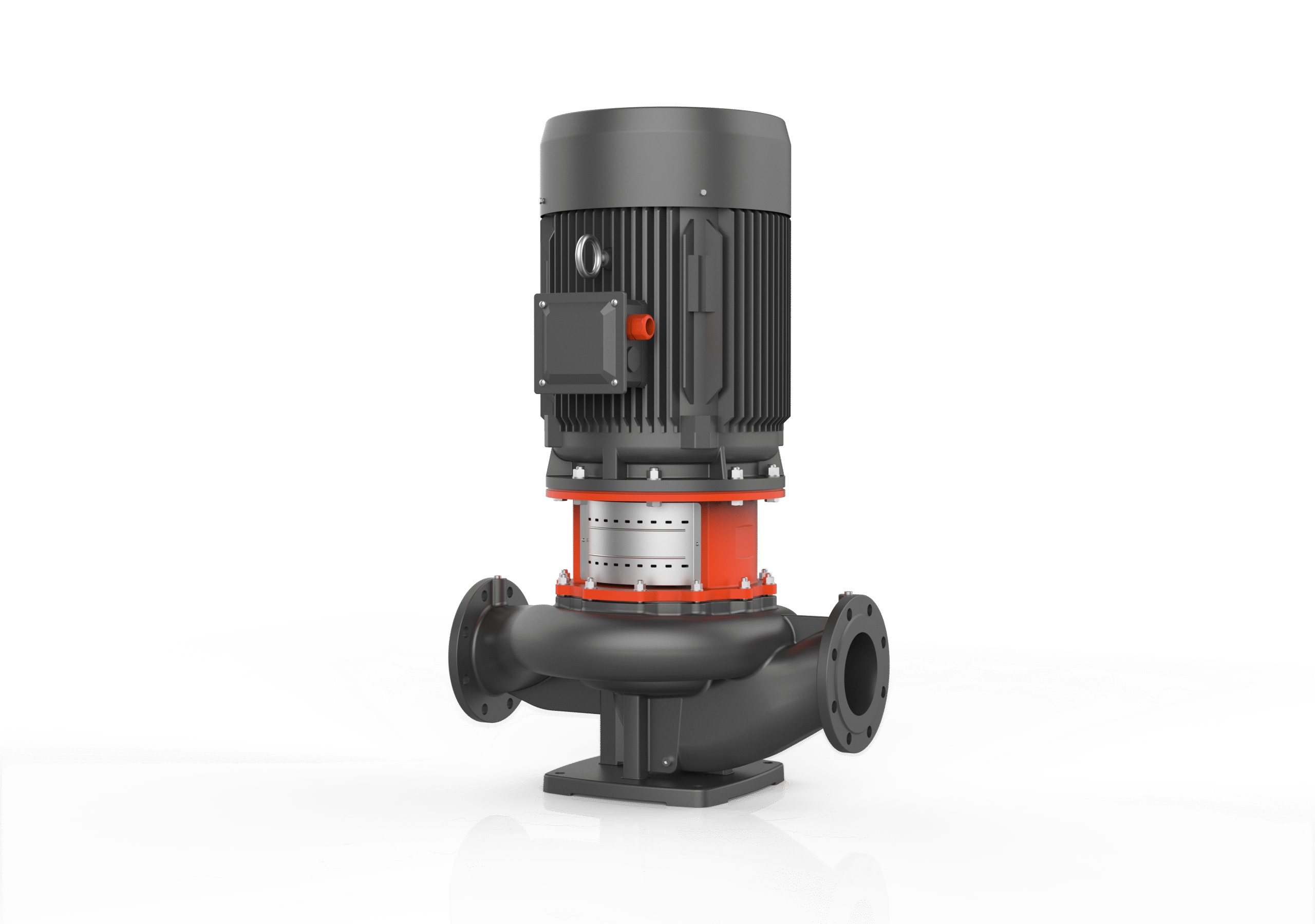

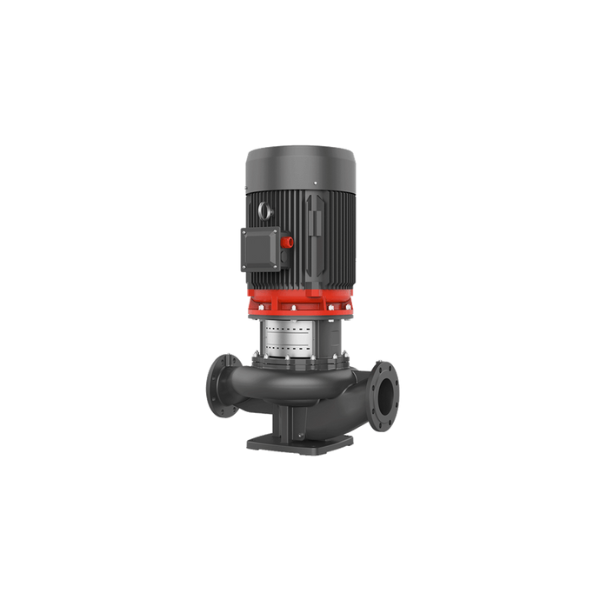

LPP VERTICAL IN-LINE PUMP

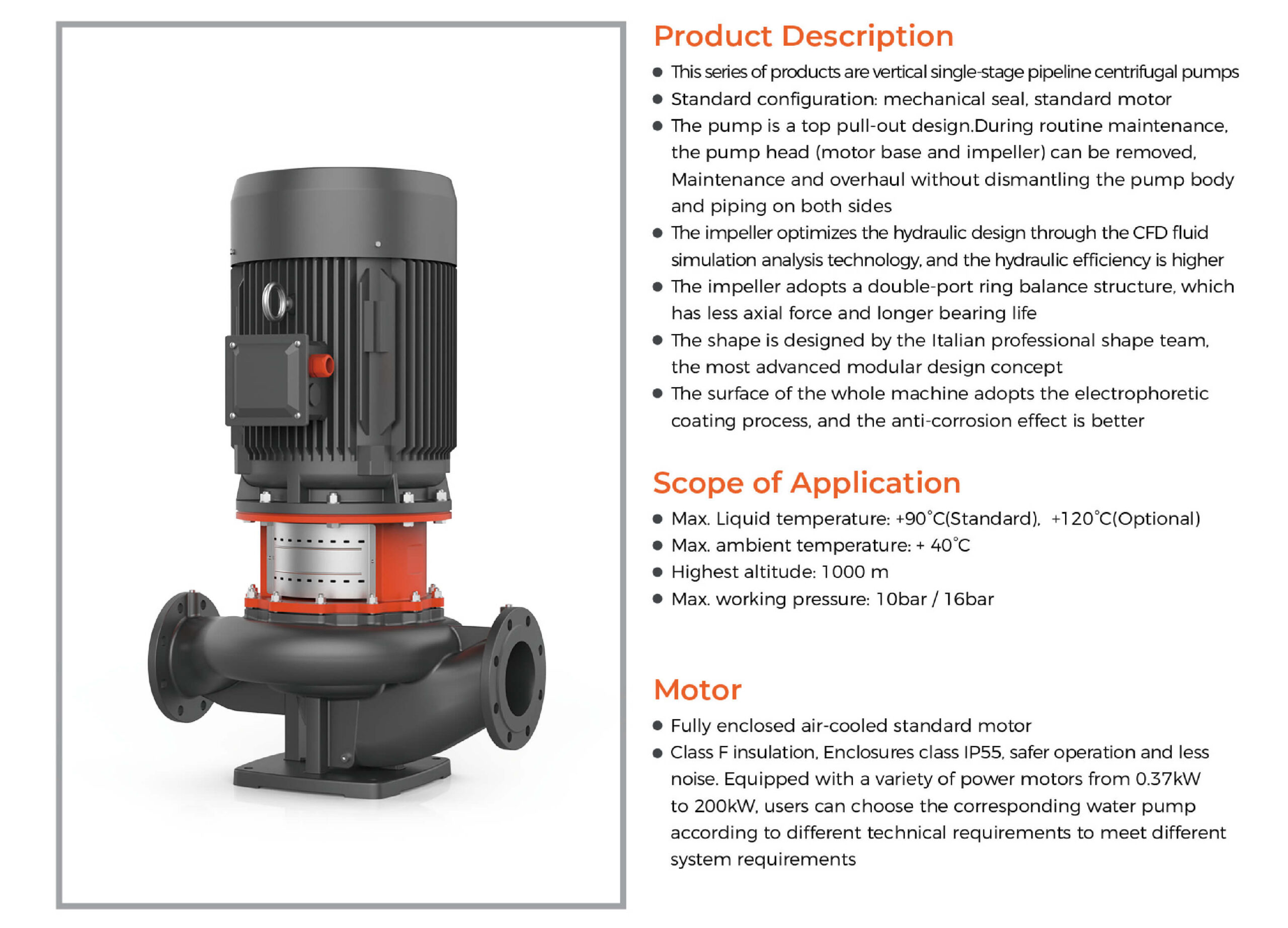

• Vertical single-stage pipeline centrifugal pump for versatile applications
• Standard configuration with mechanical seal and motor

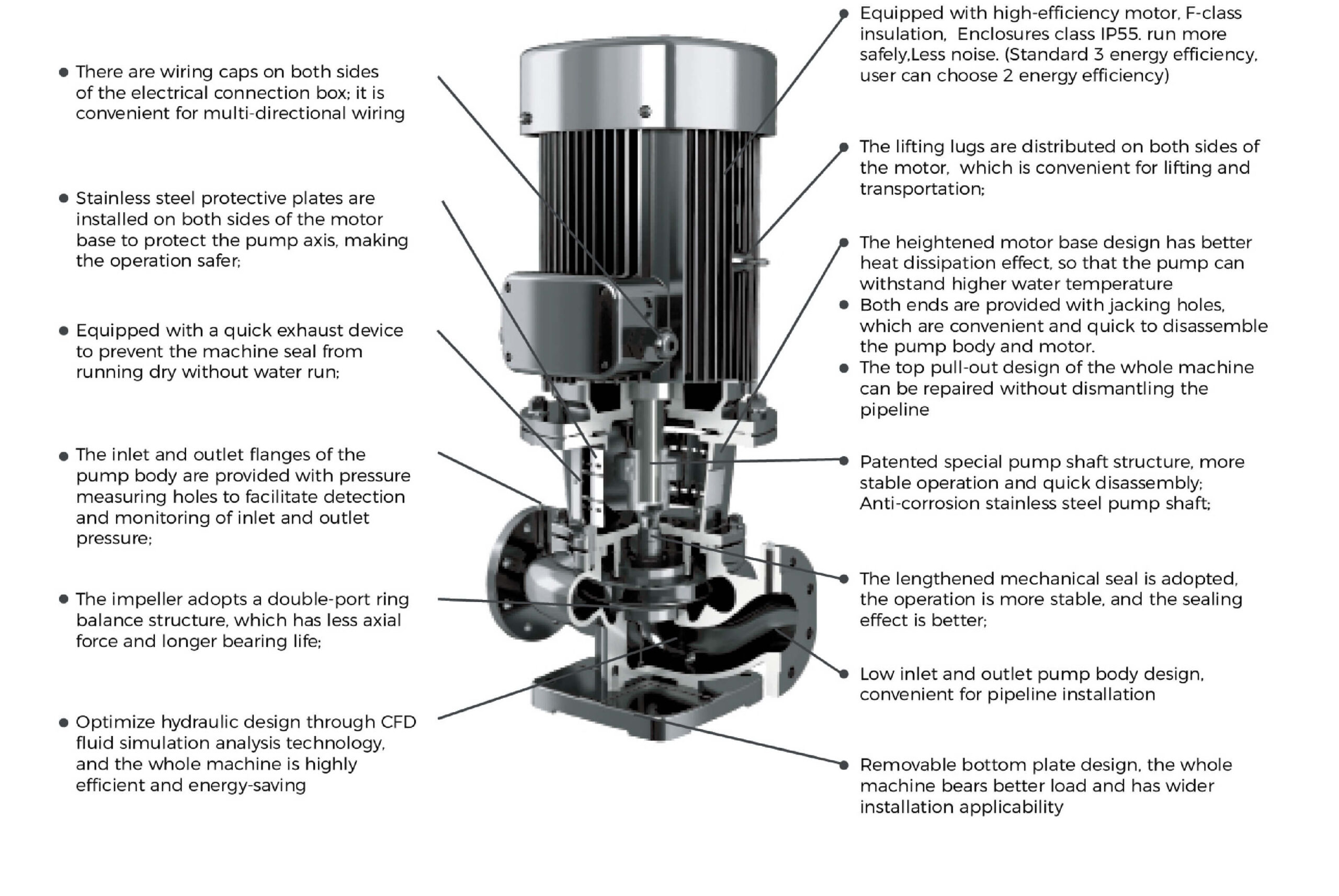

• Top pull-out design allows maintenance without dismantling piping
• CFD-optimized impeller for higher hydraulic efficiency
• Double-port ring balanced impeller reduces axial force and extends bearing life
• Italian-designed modular shape for advanced performance and aesthetics

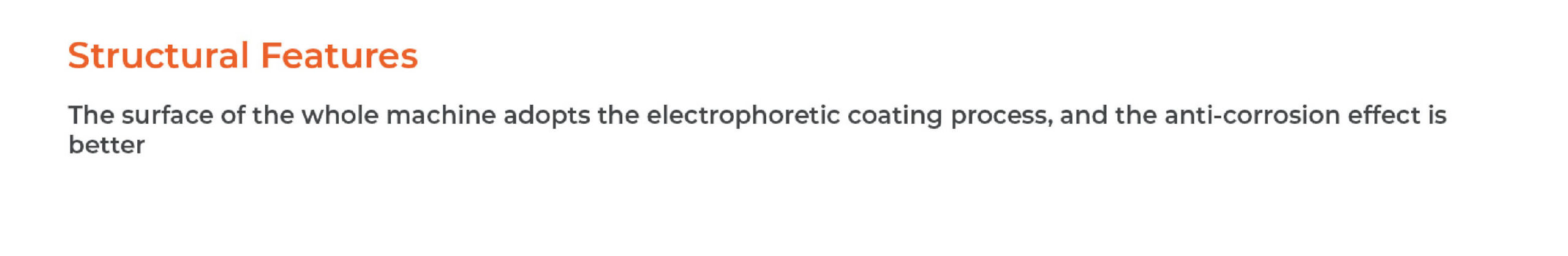

• Electrophoretic coating ensures superior anti-corrosion protection
Technical Data
- Max. flow: 760 m³/h
- Max. head: 88 m
- Power range: 0.37 ~ 132 kW (0.5 ~ 177 HP)
- DN: 32 ~ 250 mm

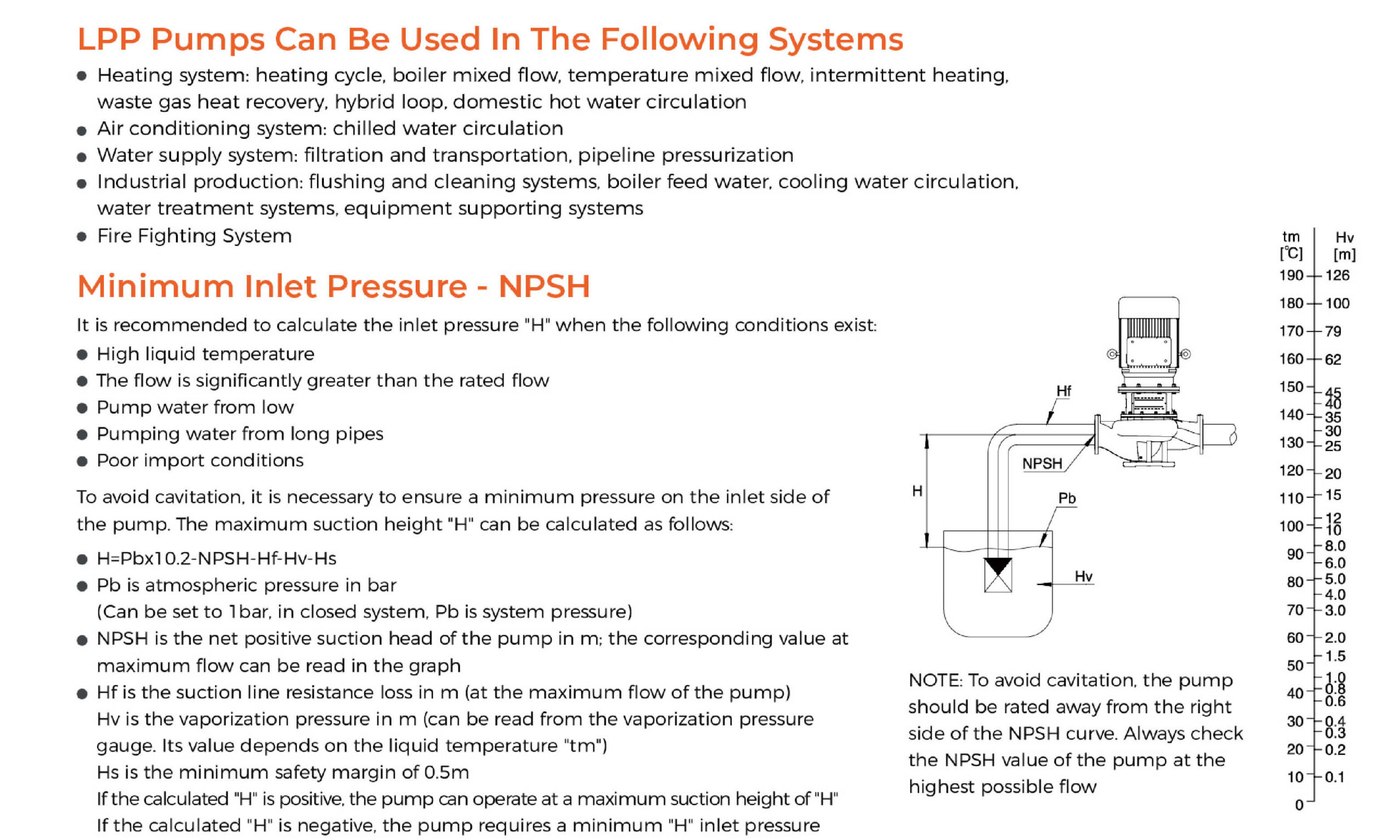

Applications
- HVAC: Circulation of hot water, boiler mix-flow, etc.
- Air conditioning system: Cooling water circulation
- Water supply system: Filtration and transfer at water works.
- Industrial applications
- Fire fighting

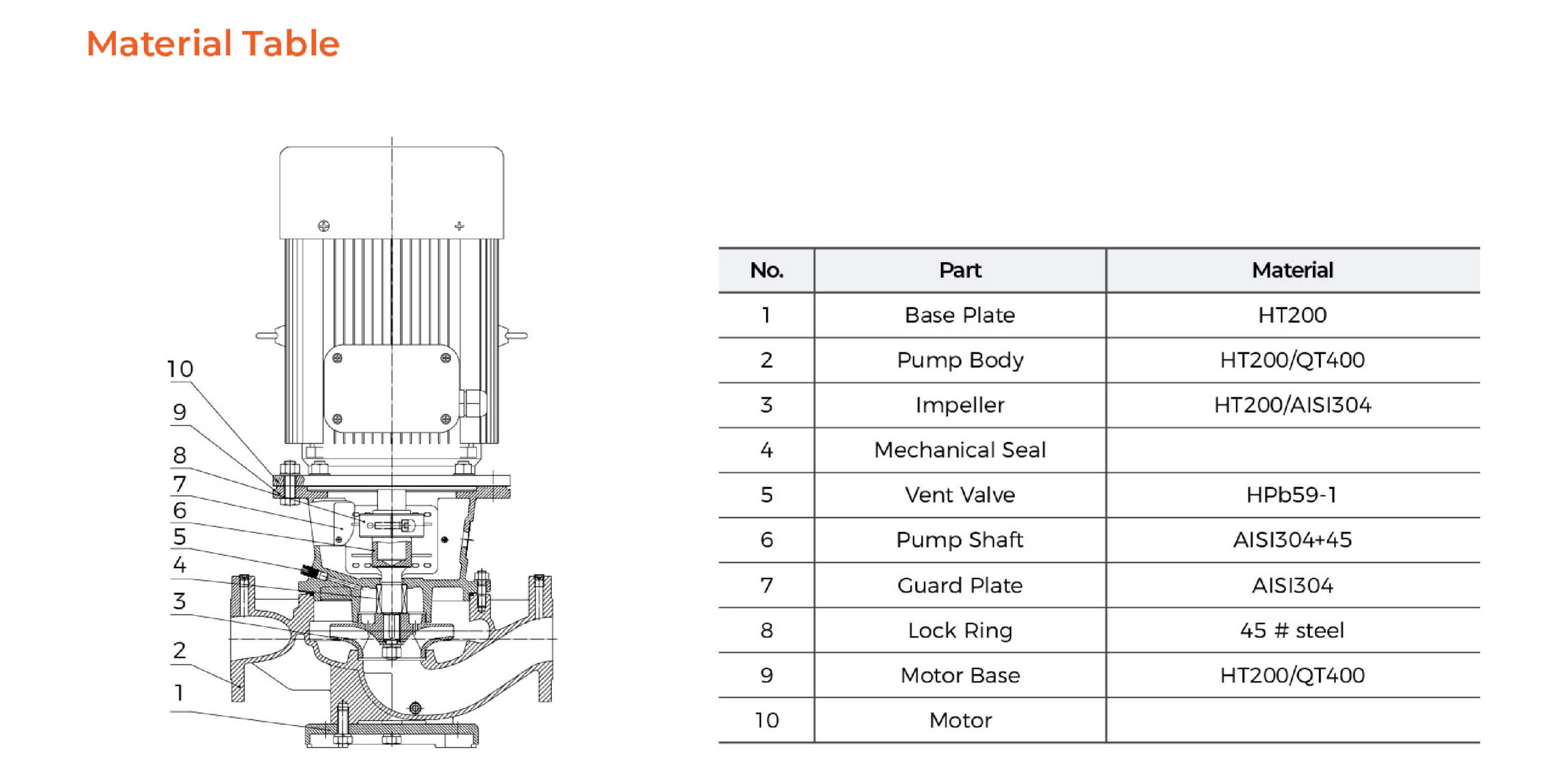

Features
- Stainless steel shaft
- Cast iron/stainless steel impeller
- Max operation pressure: 16 bar
- Dry running protection with mechanical seal
- Insulation class: F
-
